Product portfolio

of FLUXX^® Dispensing Taps (Series AH 13 and AH 23)

Series AH 13

FLUXX^® Dispensing Taps

< Product information

Downloads >

Send request >

Arrange callback >

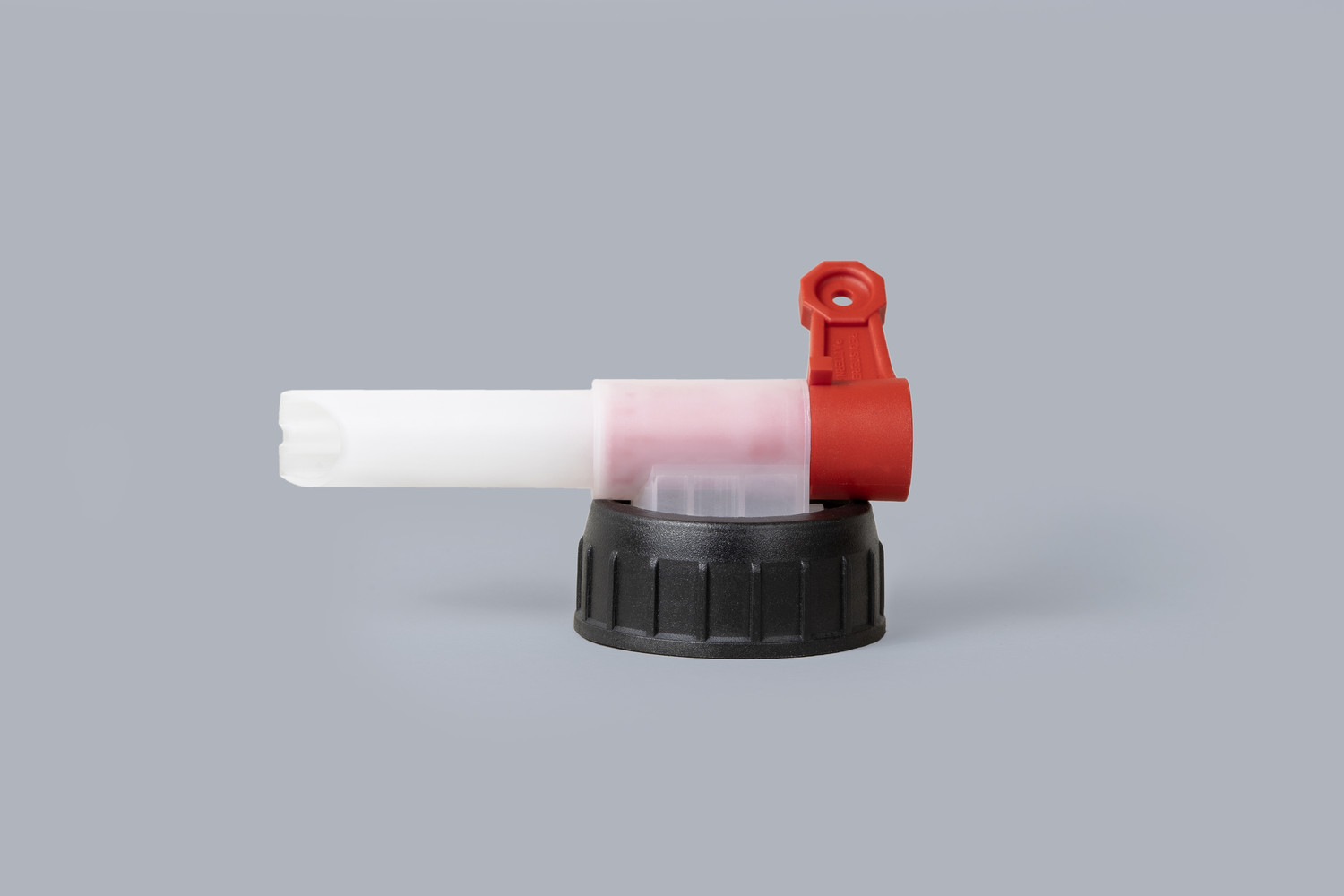

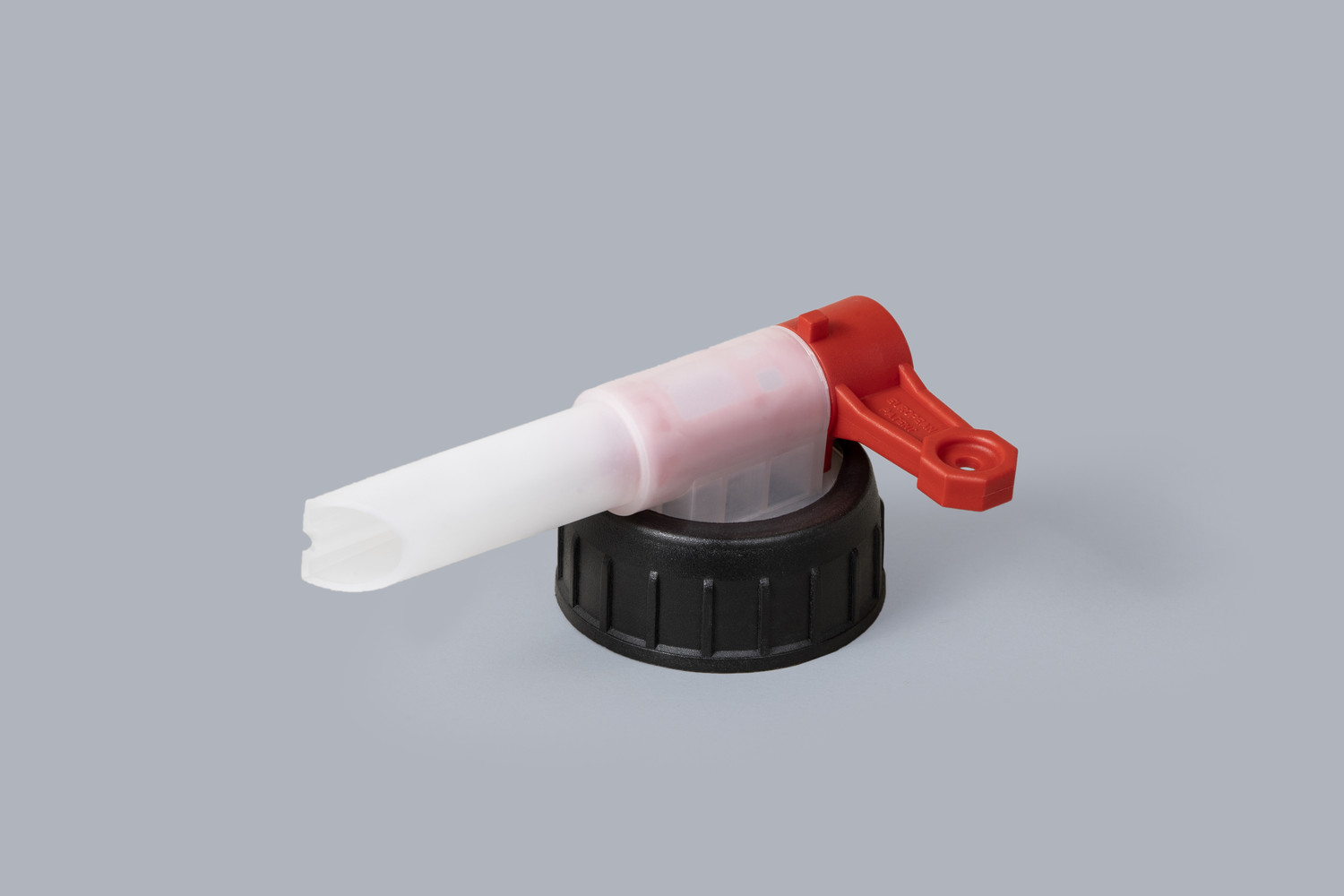

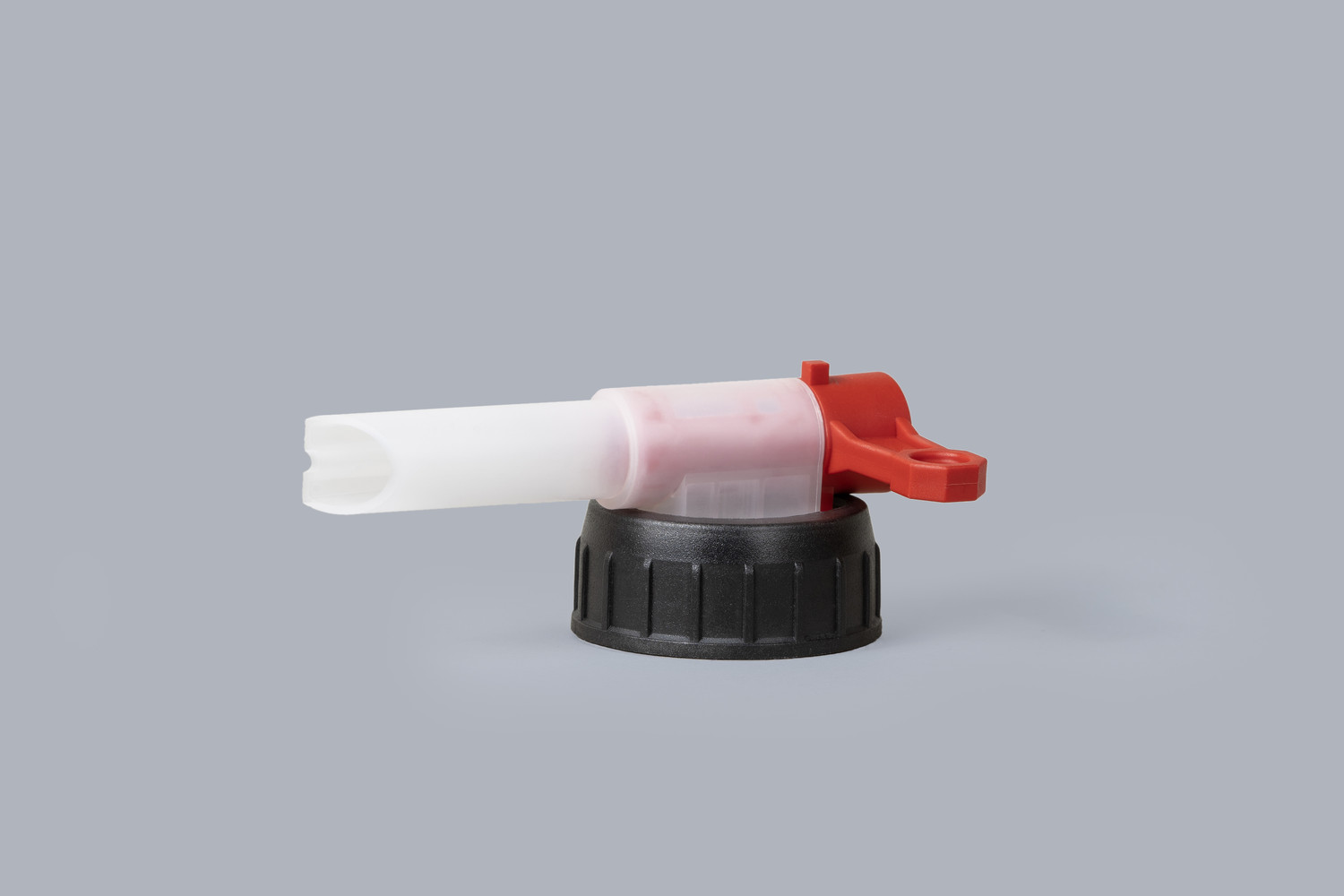

AH 13/38

Item Number: 402 144

for DIN 61 thread

Performance:
Flow rate: ≥ 1.5 L / min

Dimensions:
Ø A = 36.1 mm / 1.421 in.
Ø B = 37.9 mm / 1.492 in.
P (Thread pitch) = 3 mm / 0.118 in.

Carton quantity
750 pcs.

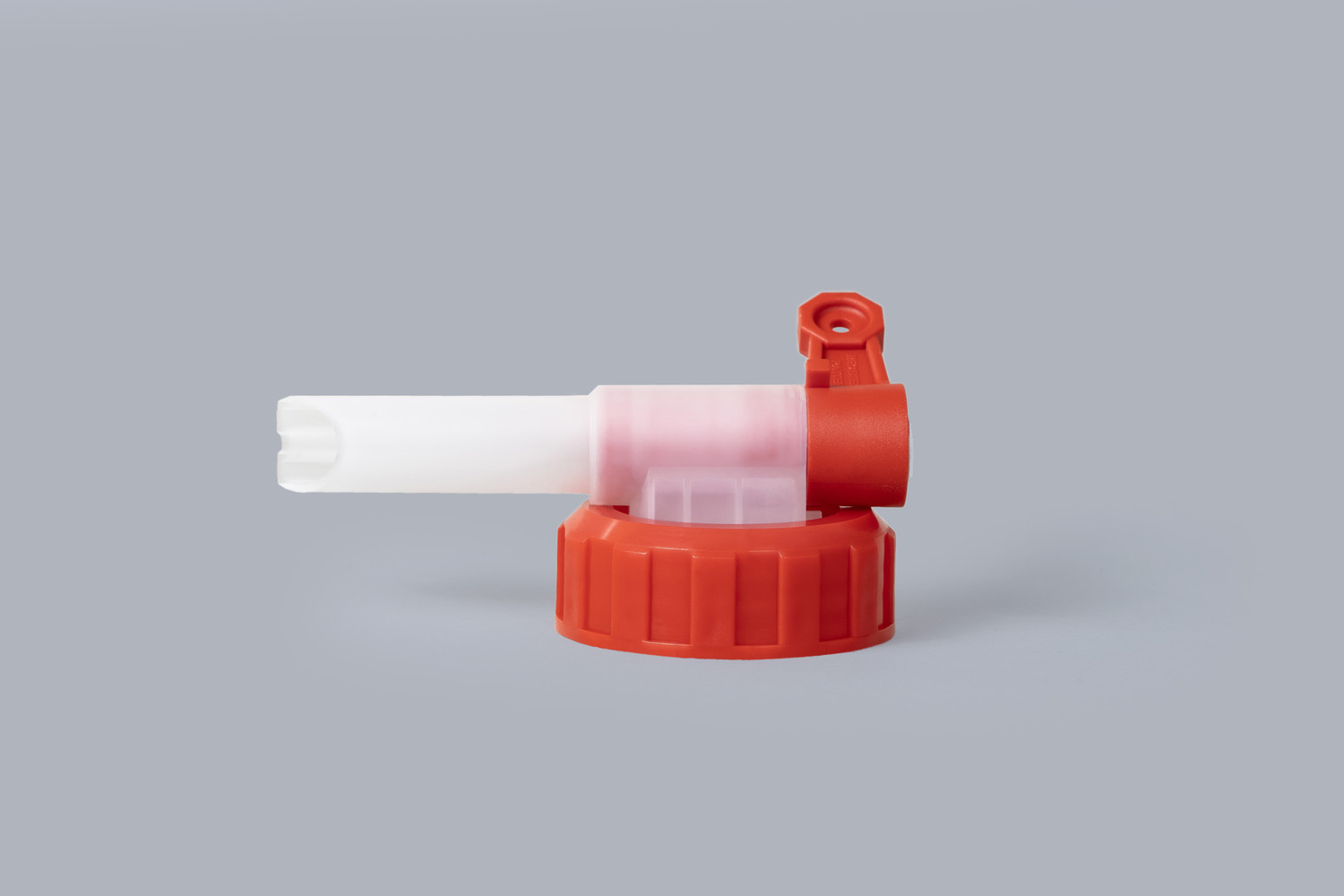

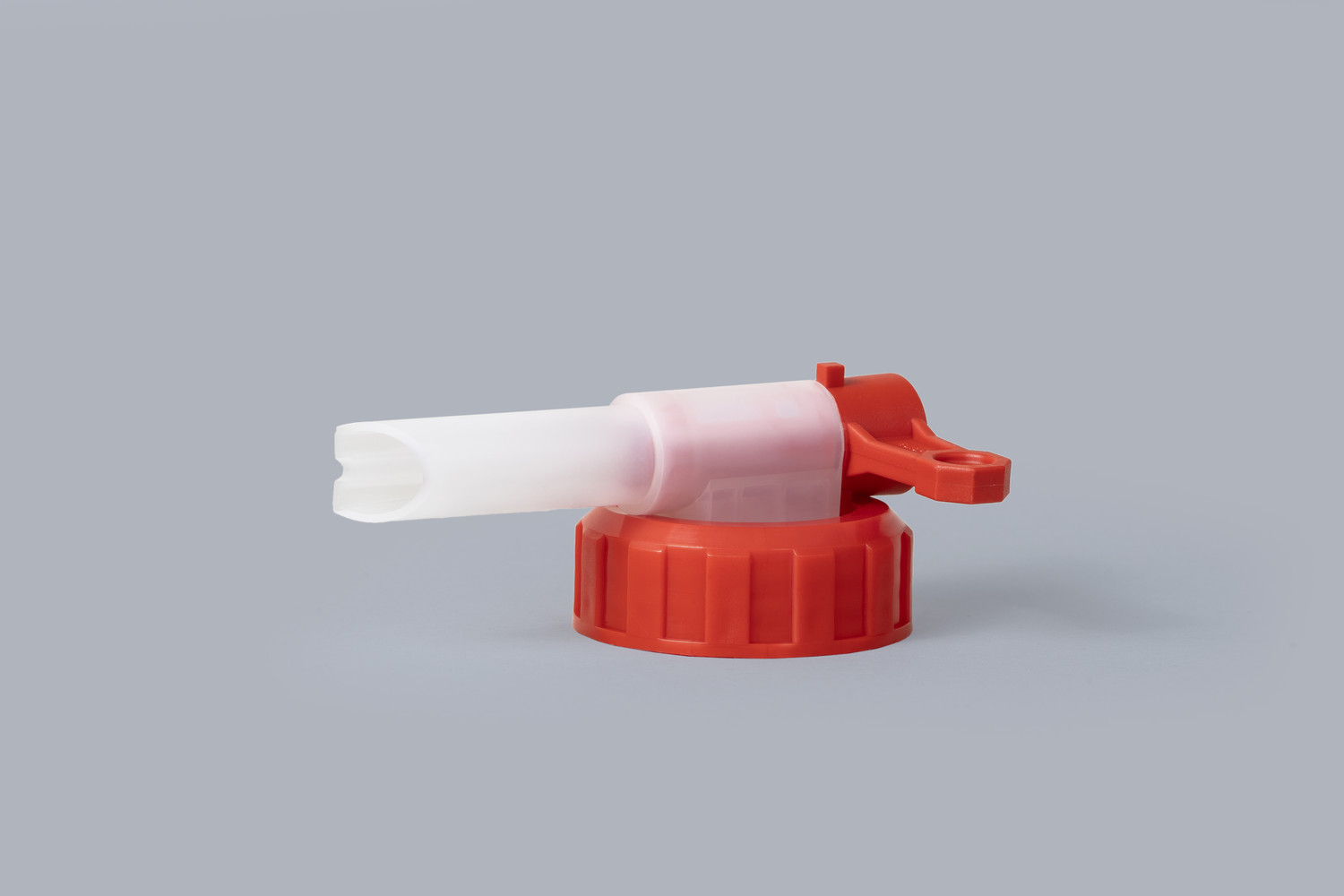

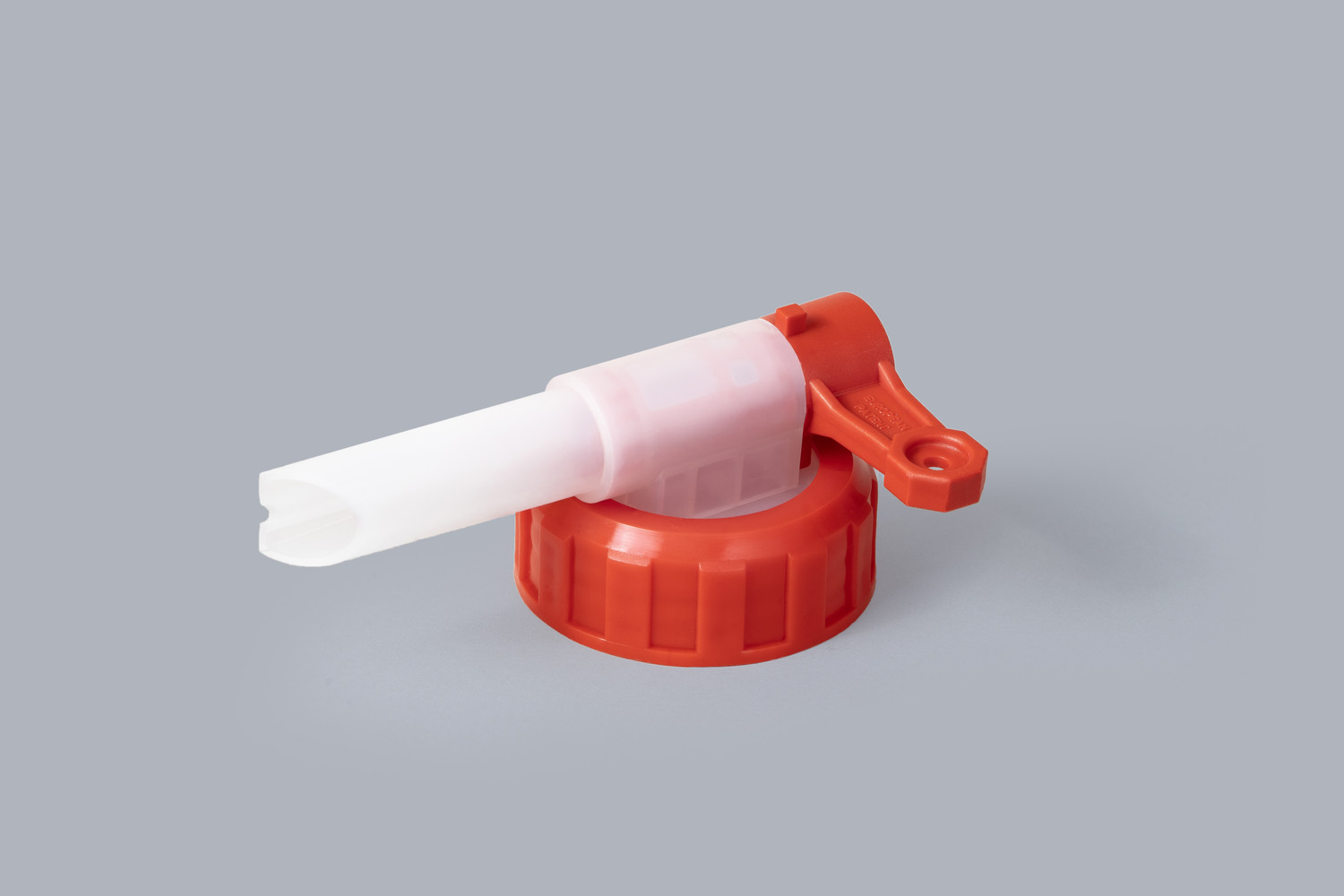

AH 13/40

Item Number: 403 133

for DIN 40 thread

Performance:
Flow rate: ≥ 1.5 L / min

Dimensions:
Ø A = 38.8 mm / 1.528 in.
Ø B = 42.2 mm / 1.661 in.
P (Thread pitch) = 4 mm / 0.157 in.

Carton quantity
750 pcs.

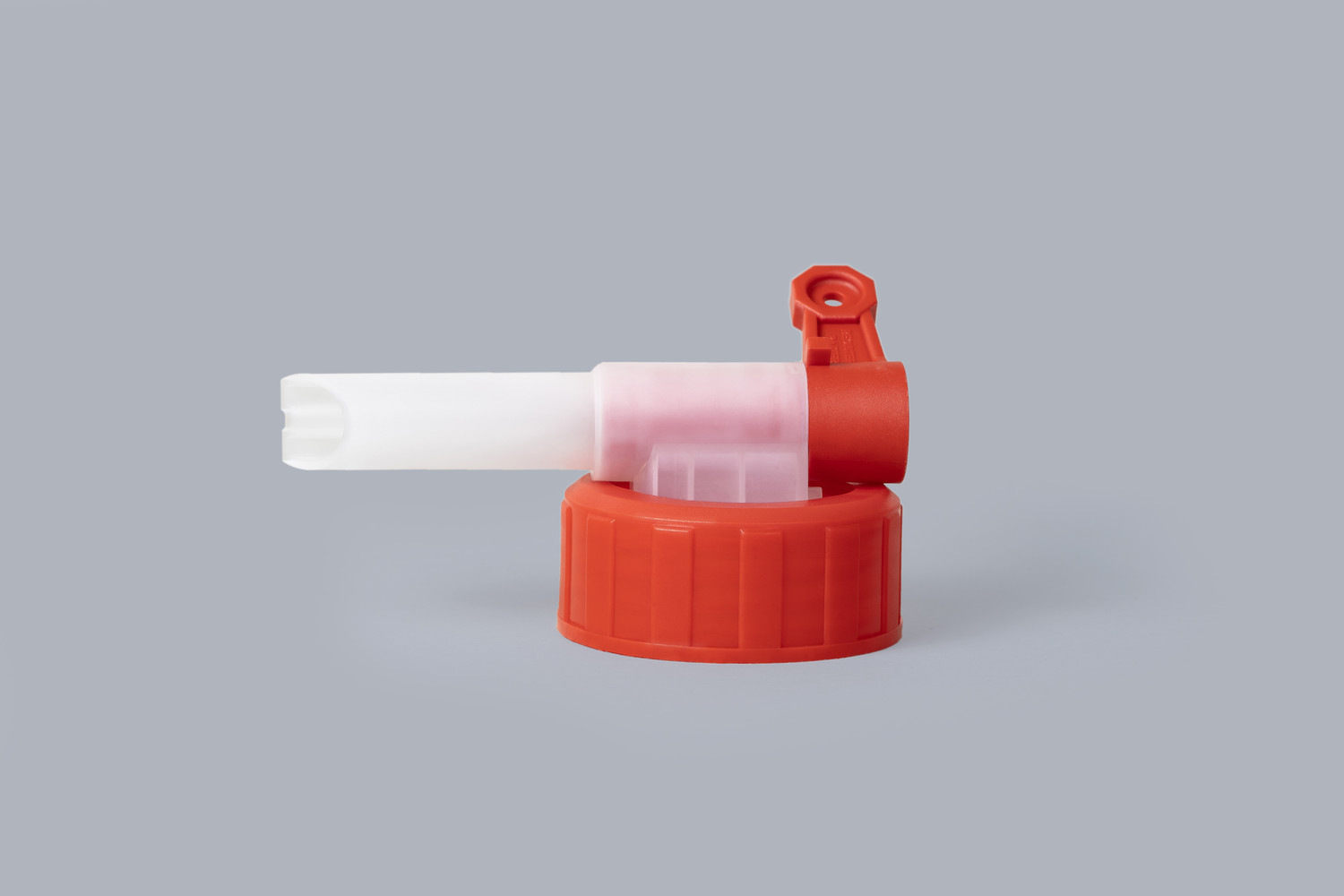

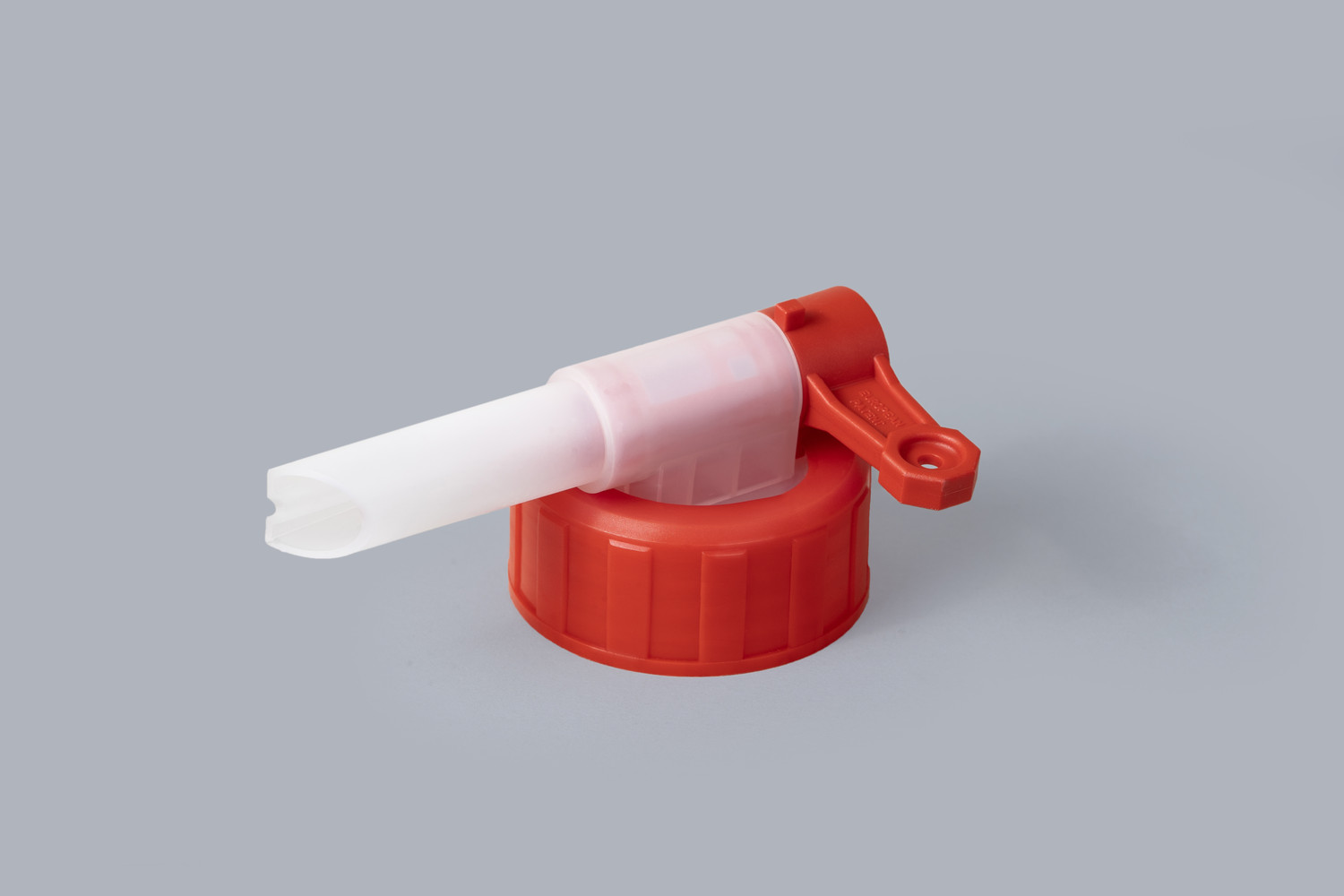

AH 13/45

Item Number: 404 133

for DIN 45 thread

Performance:
Flow rate: ≥ 1.5 L / min

Dimensions:
Ø A = 41.1 mm / 1.618 in.
Ø B = 44.8 mm / 1.764 in.
P (Thread pitch) = 4 mm / 0.157 in.

Carton quantity
650 pcs.

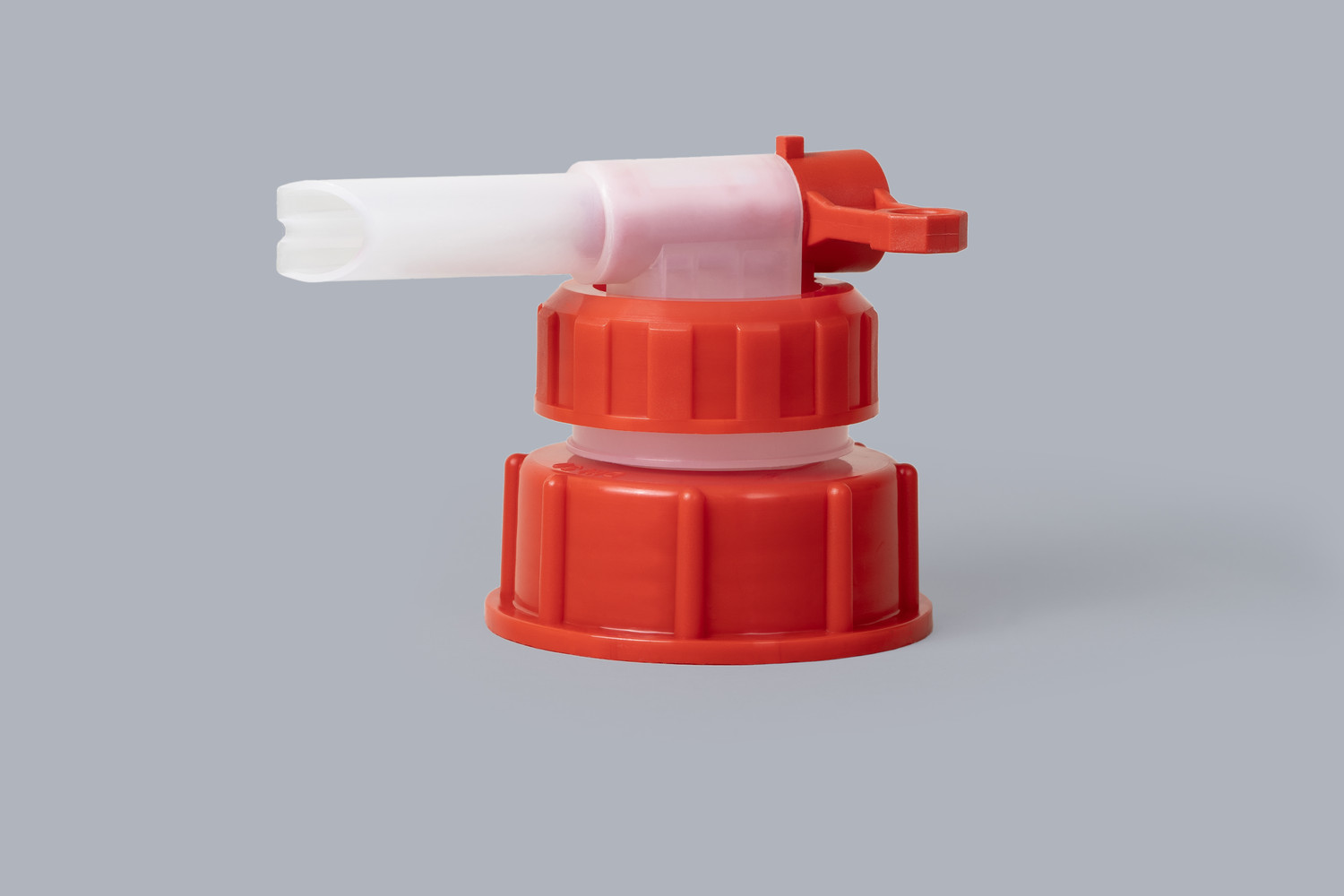

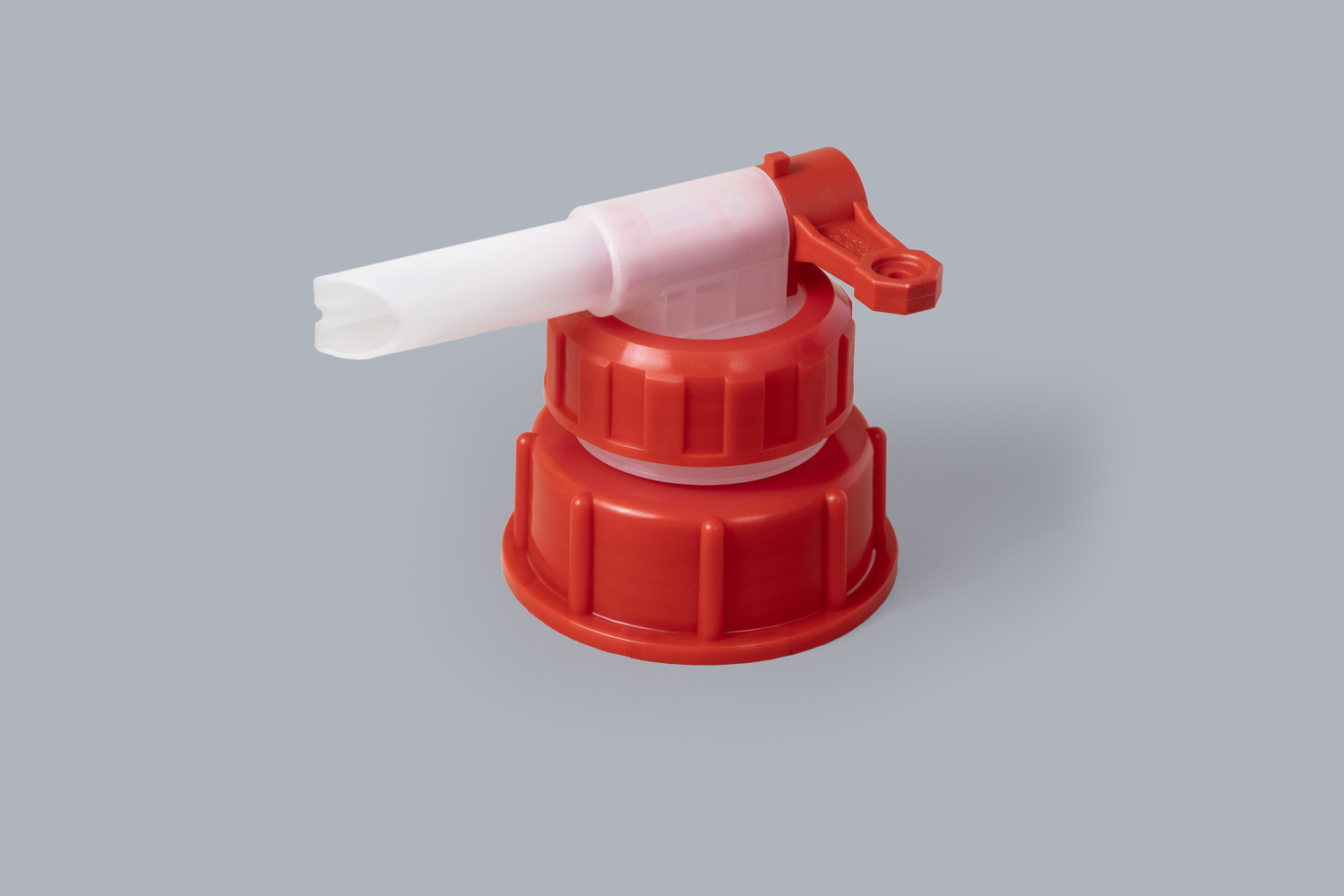

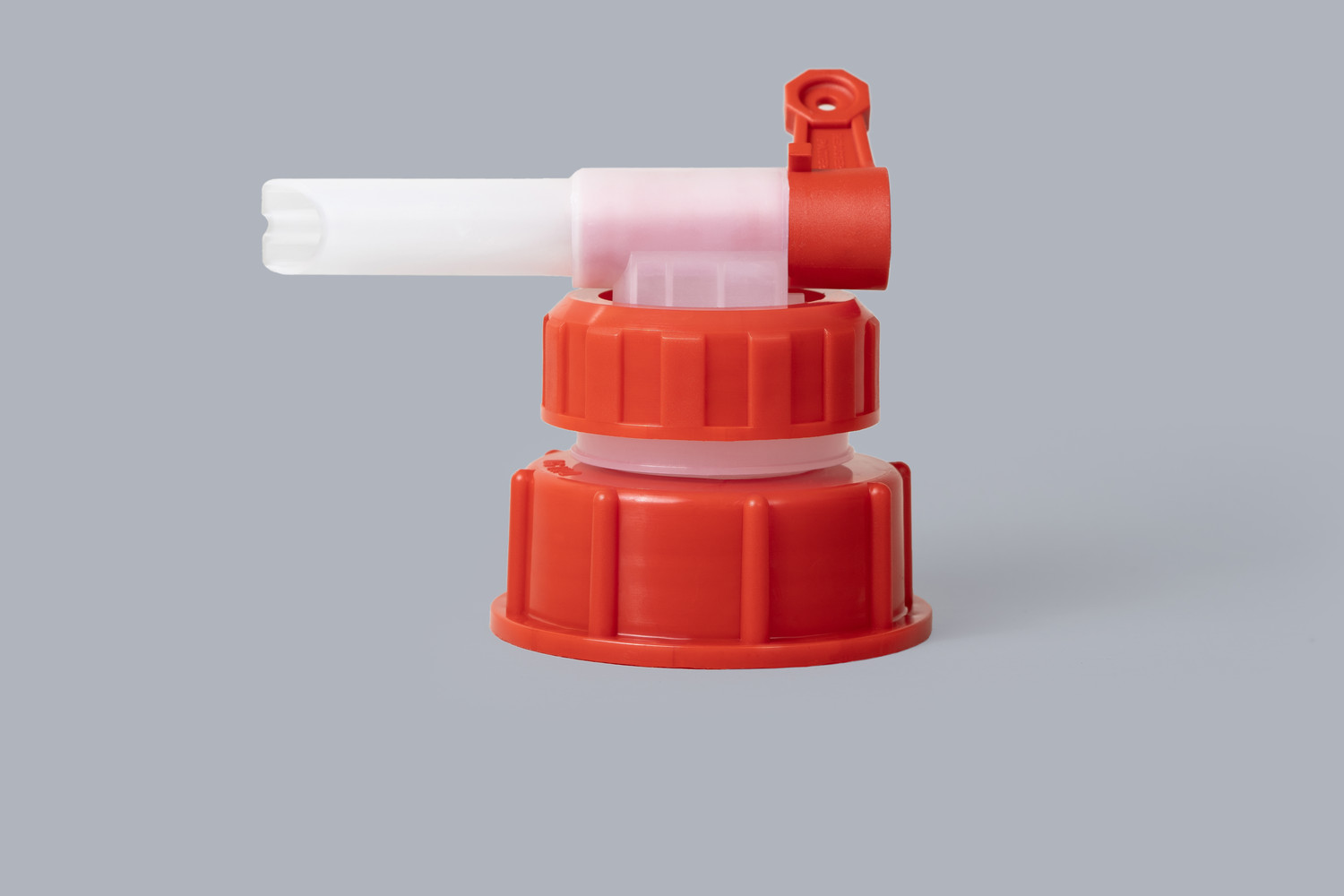

AH 13/50

Item Number: 405 232

for DIN 50 thread

Performance:
Flow rate: ≥ 1.5 L / min

Dimensions:
Ø A = 46.1 mm / 1.815 in.
Ø B = 50.1 mm / 1.972 in.
P (Thread pitch) = 4 mm / 0.157 in.

Carton quantity
250 pcs.

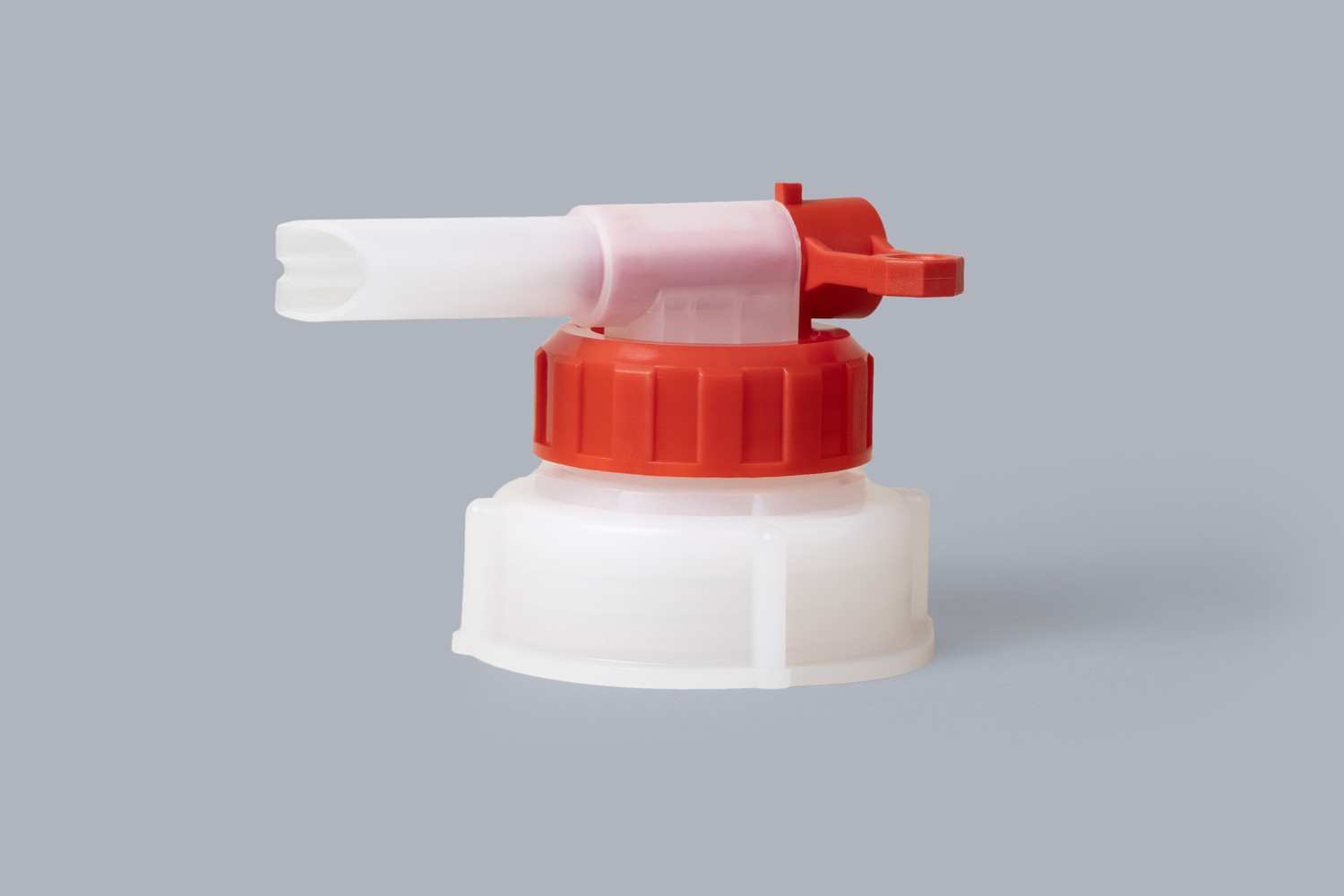

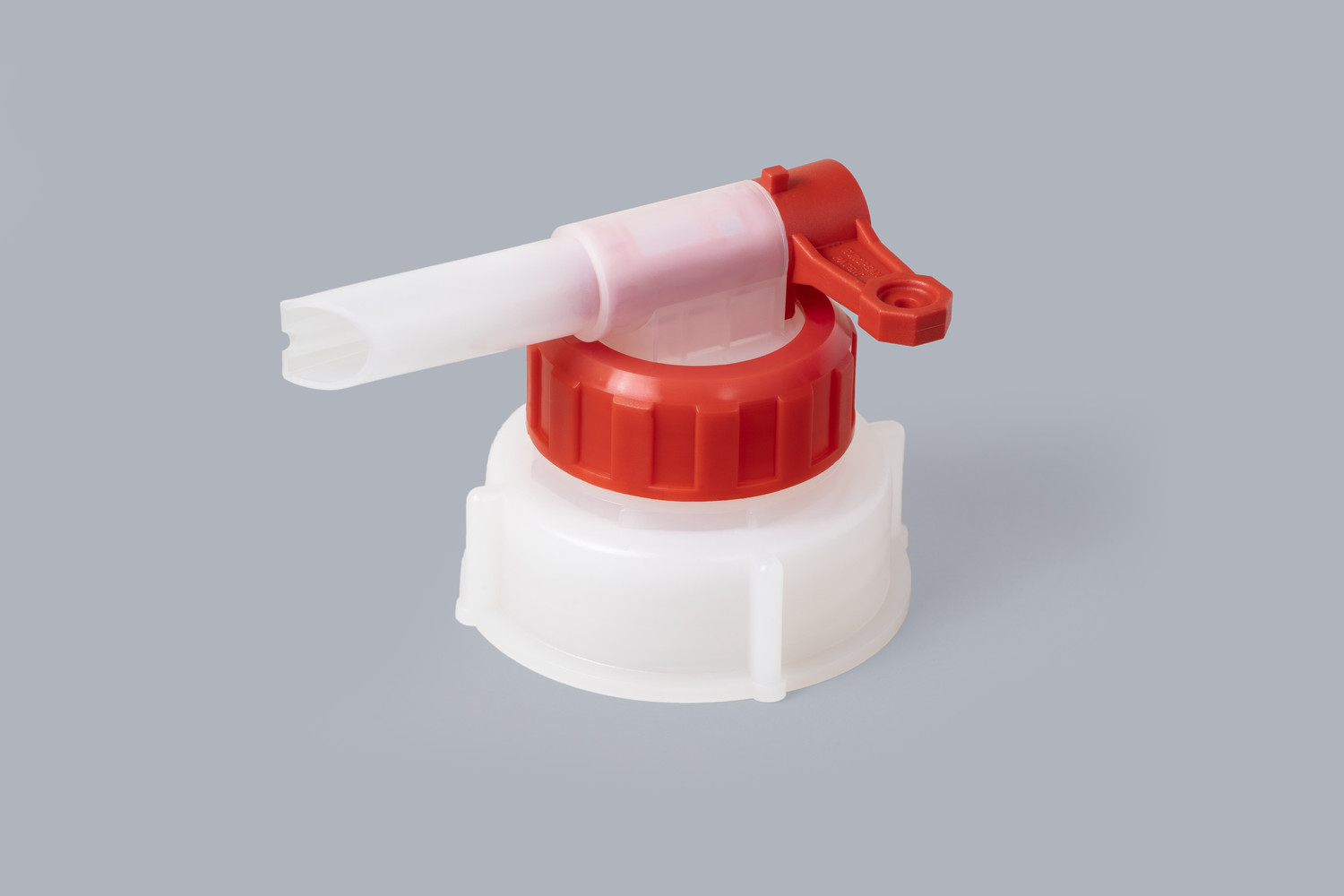

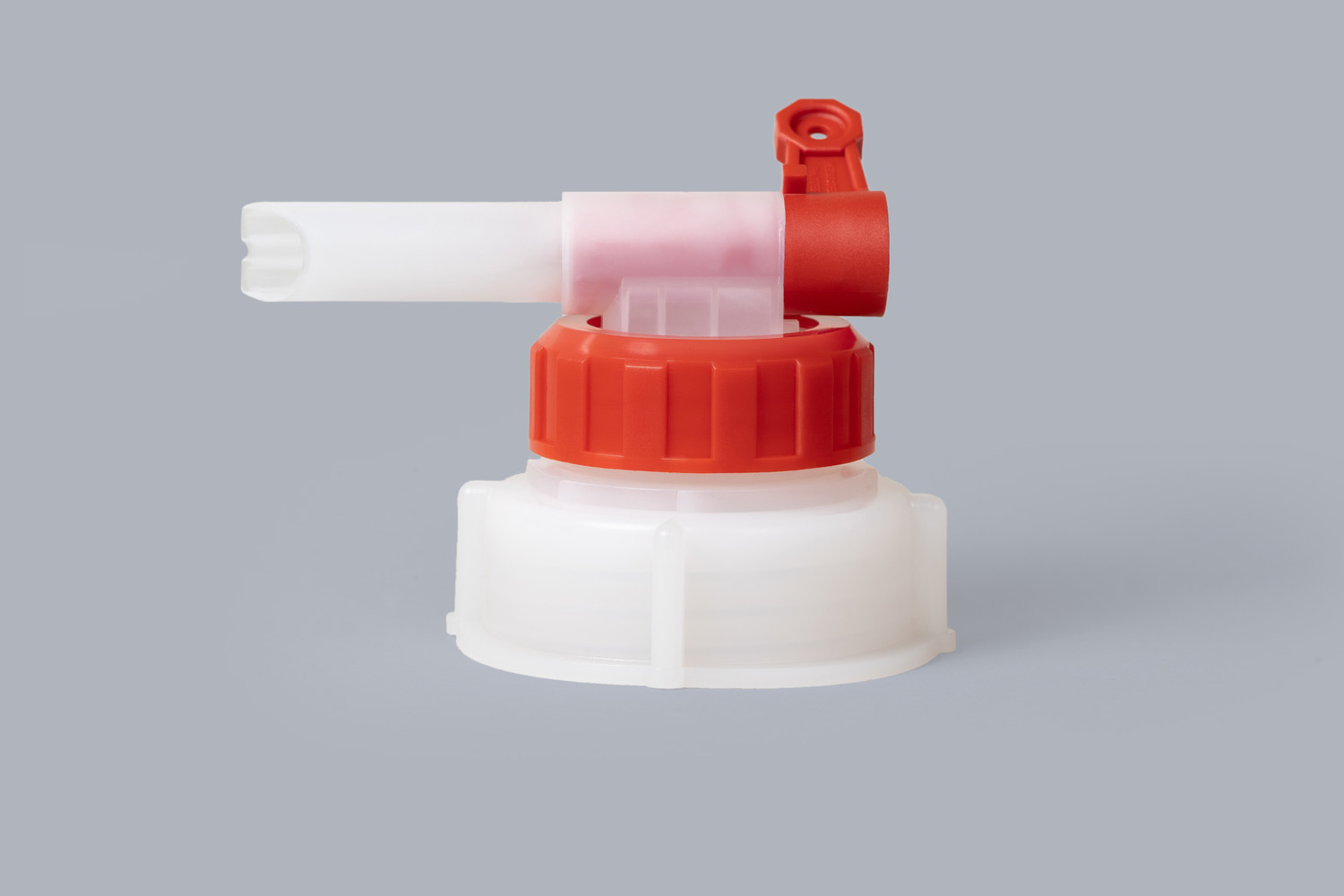

AH 13/51

Item Number: 405 133

for DIN 51 thread

Performance:
Flow rate: ≥ 1.5 L / min

Dimensions:
Ø A = 50.2 mm / 1.976 in.
Ø B = 54.8 mm / 2.157 in.
P (Thread pitch) = 5 mm / 0.197 in.

Carton quantity
250 pcs.

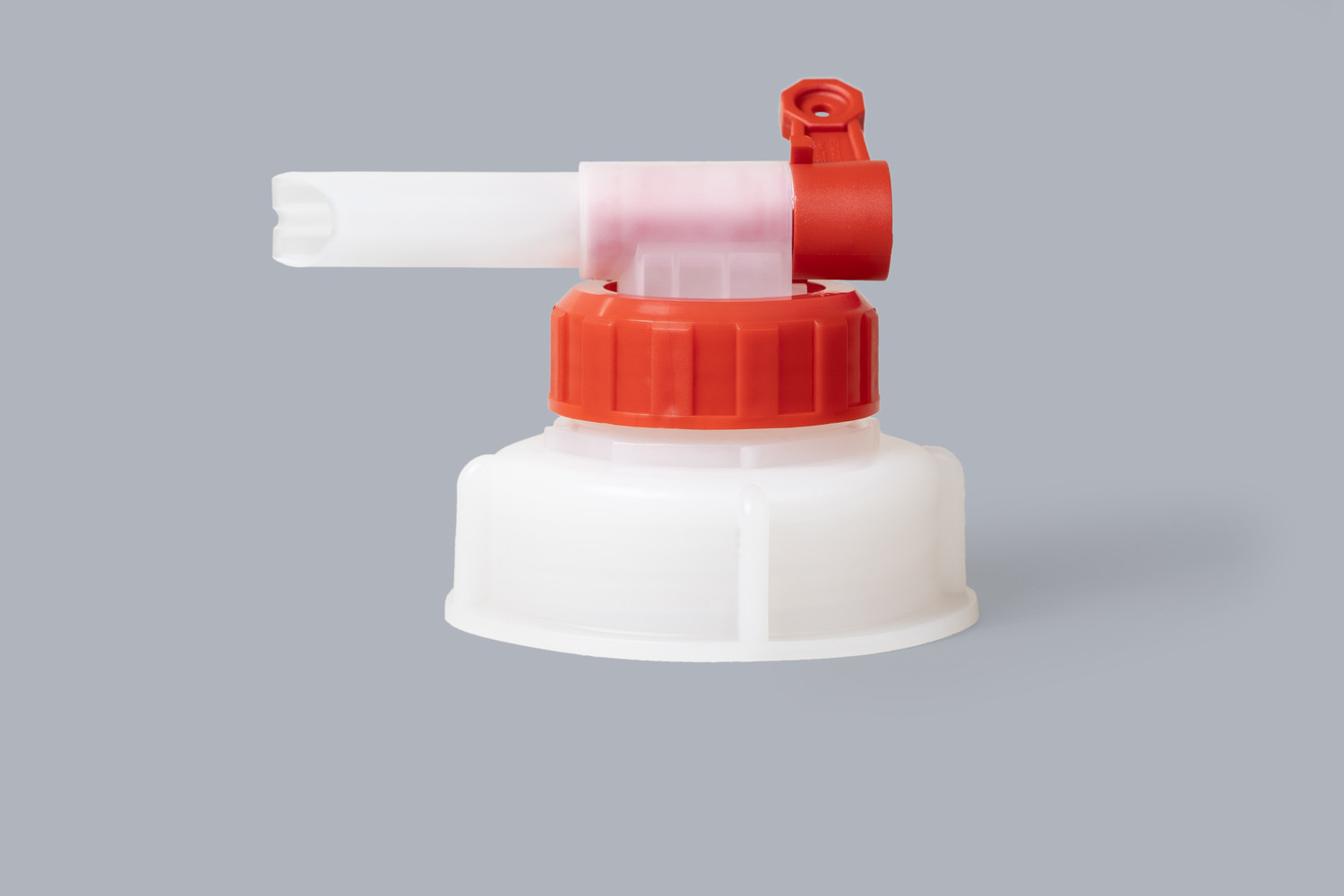

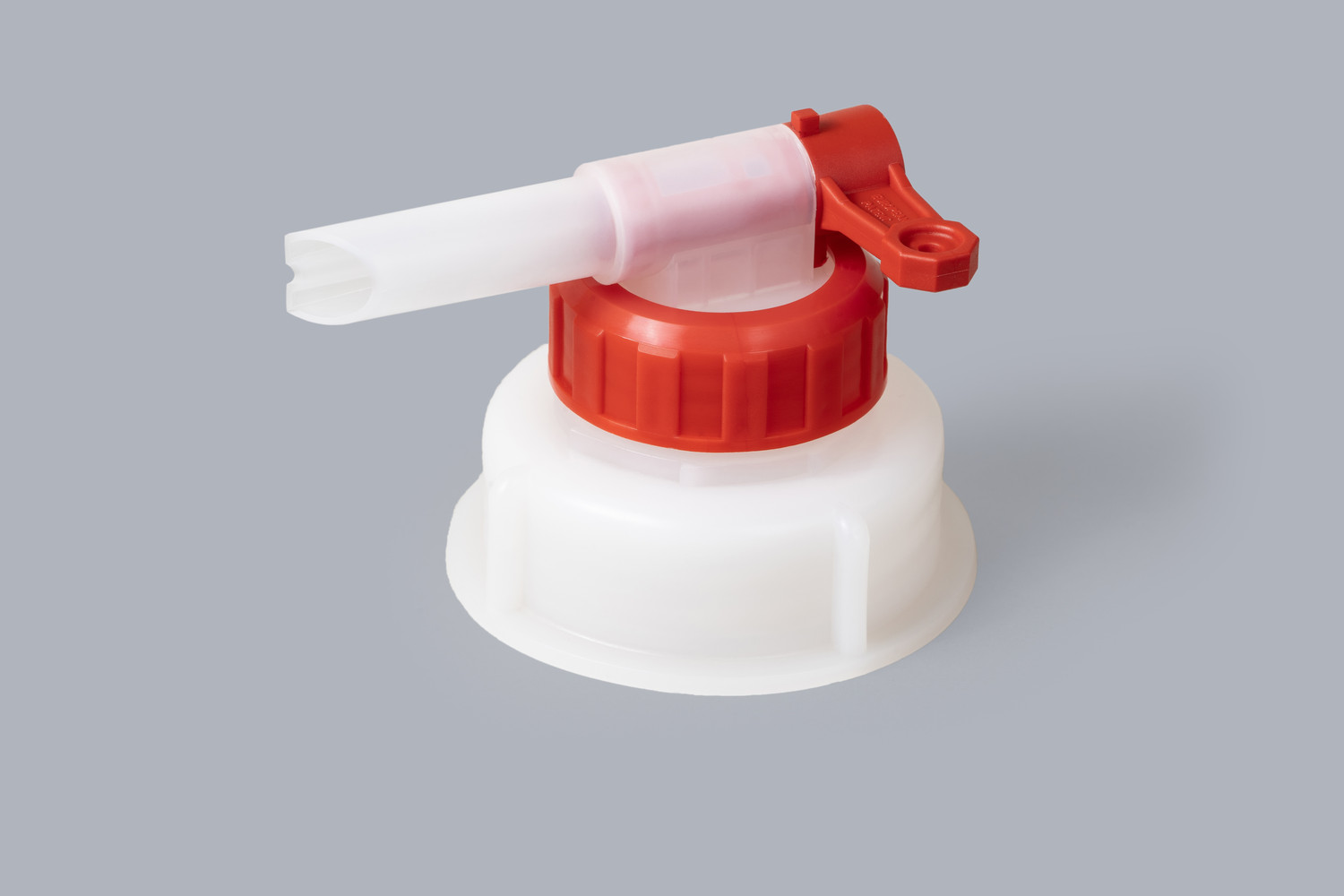

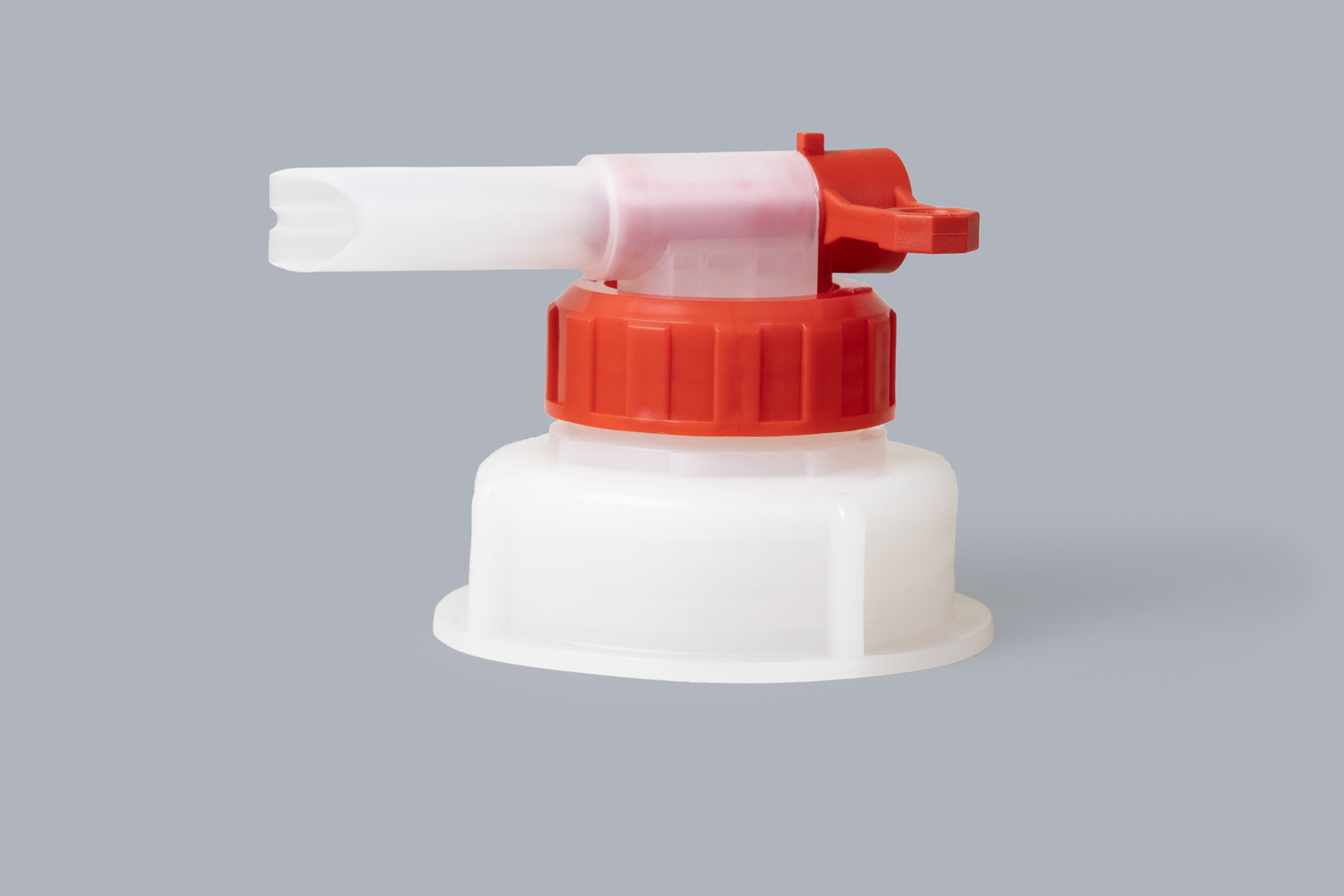

AH 13/61

Item Number: 406 133

for DIN 61 threads

Performance:
Flow rate: ≥ 1.5 L / min

Dimensions:
Ø A = 55.6 mm / 2.189 in.
Ø B = 60.5 mm / 2.382 in.
P (Thread pitch) = 6 mm / 0.236 in.

Carton quantity
200 pcs.

Series AH 23

FLUXX^® Dispensing Taps

< Product information

Downloads >

Send request >

Arrange callback >

AH 23/45

Item Number: 410 124

for DIN 45 thread

Performance:
Flow rate: ≥ 5 L / min

Dimensions:
Ø A = 41.1 mm / 1.618 in.
Ø B = 44.8 mm / 1.764 in.
P (Thread pitch) = 4 mm / 0.157 in.

Carton quantity
325 pcs.

AH 23/50

Item Number: 410 224

for DIN 50 thread

Performance:
Flow rate: ≥ 5 L / min

Dimensions:
Ø A = 46.1 mm / 1.815 in.
Ø B = 50.1 mm / 1.972 in.
P (Thread pitch) = 4 mm / 0.157 in.

Carton quantity
275 pcs.

AH 23/51

Item Number: 407 124

for DIN 51 thread

Performance:
flow rate: ≥ 5 L / min

Dimensions:
Ø A = 50.2 mm / 1.976 in.
Ø B = 54.8 mm / 2.157 in.
P (Thread pitch) = 5 mm / 0.197 in.

Carton quantity
250 pcs.

AH 23/61

Item Number: 408 124

for DIN 61 thread

Performance:
Flow rate: ≥ 5 L / min

Dimensions:
Ø A = 55.6 mm / 2.189 in.
Ø B = 60.5 mm / 2.382 in.
P (Thread pitch) = 6 mm / 0.236 in.

Carton quantity
200 pcs.

AH 23/63

Item Number: 410 426

for DIN 63 thread

Performance:
Flow rate: ≥ 5 L / min

Dimensions:
Ø A = 60.7 mm / 2.390 in.
Ø B = 64.5 mm / 2.539 in.
P (Thread pitch) = 4.2 mm / 0.165 in.

Carton quantity
150 pcs.

AH 23/71

Item Number: 410 320

for DIN 71 thread

Performance:
Flow rate: ≥ 5 L / min

Dimensions:
Ø A = 67.0 mm / 2.638 in.
Ø B = 72.3 mm / 2.846 in.
P (Thread pitch) = 7 mm / 0.276 in.

Carton quantity
125 pcs.

AH 23 / ¾"

Item Number: 409 120

with ¾" external thread

Performance:
Flow rate: ≥ 5 L / min

Dimensions:
Ø A = R ¾" BSP thread
H = 16 mm / 0.630 in.

Carton quantity
250 pcs.

AH 23 / ¾" (BCS 70x6)

Item Number: 409 220

on BCS 70x6 rough thread

Performance:
Flowing rate: ≥ 5 L / min

Dimensions:
Ø A = R ¾" on BCS 70x6
rough thread

Carton quantity
175 pcs.

AH 23 / ¾" (BCS 56x4)

Item Number: 409 320

on BCS 56x4 rough thread

Performance:
Flow rate: ≥ 5 L / min

Dimensions:
Ø A = R ¾" on BCS 56x4
rough thread

Carton quantity
175 pcs.

AH 23 / ¾" (PPS 2")

Item Number: 409 420

on PPS 2" fine thread

Performance:
Flow rate: ≥ 5 L / min

Dimensions:
Ø A = R ¾" on PPS 2"
fine thread

Carton quantity
175 pcs.

Protection cap AH 23

Item Number: 999 008

Dimensions:
Suitable for all
Dispensing Taps AH 23

Carton quantity
Upon request
